Other Gases Sensed | Description |
| Acrylonitrile | The Acrylonitrile gas sensor is calibrated 5ppm full scale to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss - Acrylonitrile gas monitor since it has a linear signal output. |
| |
| Ammonia | The Ammonia gas sensor is calibrated 50ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss - Ammonia gas monitor since it has a linear signal output. |
| |
| Arsine | The Arsine gas sensor is calibrated 0.10ppm full scale to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss - Arsine gas monitor since it has a linear signal output. |
| |
| Bromine | The Bromine gas sensor is calibrated 0.2ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss - Bromine gas monitor since it has a linear signal output. |
| |
| Carbon Disulfide | The Carbon Disulfide gas sensor is calibrated 20ppm full scale to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Carbon Disulfide gas monitor since it has a linear signal output. |
| |
| Carbon Monoxide | The Carbon Monoxide gas sensor is calibrated 250 or 500ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Carbon Monoxide gas monitor since it has a linear signal output. |
| |
| Chlorine | The Chlorine gas sensor is calibrated 2ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss - Chlorine gas monitor since it has a linear signal output. |
| |
| Chlorine Dioxide | The Chlorine Dioxide gas sensor is calibrated 0.5ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss - Chlorine Dioxide gas monitor since it has a linear signal output. |
| |
| Diborane | The Diborane gas sensor is calibrated 1ppm full scale to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Carbon Disulfide gas monitor since it has a linear signal output. |
| |
| Ethene | The Ethene gas sensor is calibrated 5ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss - Ethene gas monitor since it has a linear signal output. |
| |
| Ethylene Oxide | The Ethylene Oxide gas sensor is calibrated 1ppm full scale to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Ethylene Oxide gas monitor since it has a linear signal output. |
| |
| Flourine | The Flourine gas sensor is calibrated 1ppm full scale to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Flourine gas monitor since it has a linear signal output. |
| |
| Formaldehyde | The Formaldehyde gas sensor is calibrated 0.5ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss - Formaldehyde gas monitor since it has a linear signal output. |
| |
| Hydrazine | The Hydrazine gas sensor is calibrated 0.01ppm full scale to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Hydrazine gas monitor since it has a linear signal output. |
| |
| Hydrides | The Hydrides gas sensor is calibrated to customer’s specifications to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Hydrides gas monitor since it has a linear signal output. |
| |
| Hydrogen | The Hydrogen gas sensor is calibrated up to 4% H2 to encompass the LEL (Lower Explosive Limit). Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Hydrogen gas monitor since it has a linear signal output. See GasBoss Sensor. |
| |
| Hydrogen Bromide | The Hydrogen Bromide gas sensor is calibrated 5ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Hydrogen Bromide gas monitor since it has a linear signal output. |
| |
| Hydrogen Chloride | The Hydrogen Chloride gas sensor is calibrated 10ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Hydrogen Chloride gas monitor since it has a linear signal output. |
| |
| Hydrogen Cyanide | The Hydrogen Cyanide gas sensor is calibrated 10ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Hydrogen Cyanide gas monitor since it has a linear signal output. |
| |
| Hydrogen Fluoride | The Hydrogen Fluoride gas sensor is calibrated 6ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Hydrogen Fluoride gas monitor since it has a linear signal output. |
| |
| Hydrogen Peroxide | The Hydrogen Peroxide gas sensor is calibrated 2ppm full scale to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Hydrogen Peroxide gas monitor since it has a linear signal output. |
| |
| Hydrogen Selenide | The Hydrogen Selenide gas sensor is calibrated 0.1ppm full scale to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Hydrogen Selenide gas monitor since it has a linear signal output. |
| |
| Hydrogen Sulphide | The Hydrogen Sulfide gas sensor is calibrated 30ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Hydrogen Sulfide gas monitor since it has a linear signal output. |
| |
| Mercaptan | The Mercaptan gas sensor is calibrated to customer’s specifications to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Mercaptan gas monitor since it has a linear signal output. |
| |
| Nitric Oxide | The Nitric Oxide gas sensor is calibrated 50ppm full scale to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Nitric Oxide gas monitor since it has a linear signal output. |
| |
| Nitrogen Dioxide | The Nitrogen Dioxide gas sensor is calibrated 10ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Nitrogen Dioxide gas monitor since it has a linear signal output. |
| |
| Nitrogen Monoxide | The Nitrogen Monoxide gas sensor is calibrated to customer’s specifications to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Nitrogen Monoxide gas monitor since it has a linear signal output. |
| |
| Oxygen | The Oxygen sensor is calibrated 25% full scale to encompass ambient Oxygen level in breathable air. Calibrating for lower concentration for certain applications is no problem for the ToxiBoss – Oxygen monitor since it has a linear signal output. Also see OxyBoss. |
| |
| Ozone | The Ozone gas sensor is calibrated 0.1ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Ozone gas monitor since it has a linear signal output. |
| |
| Phosgene | The Phosgene gas sensor is calibrated 0.2ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Phosgene gas monitor since it has a linear signal output. |
| |
| Phosphine | The Phosphine gas sensor is calibrated 2ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Phosphine gas monitor since it has a linear signal output. |
| |
| Silane | The Silane gas sensor is calibrated 10ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Silane gas monitor since it has a linear signal output. |
| |
| Sulphur Dioxide | The Sulfur Dioxide gas sensor is calibrated 10ppm full scale to encompass the TWA (Time Weighted Average) and the STEL (Short-Term Exposure Limit). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes when dealing with the STEL; this is no problem for the ToxiBoss – Sulfur Dioxide gas monitor since it has a linear signal output. |
| |
| Tetrahydrothiophene | The Tetrahydrothiophene gas sensor is calibrated to customer’s specifications to encompass the TWA (Time Weighted Average). Higher ranges are available as special order and require precautions when working with these concentrations of gas. Calibrating sensors above the TWA may require certain safety gear and or facilities. Calibrating with a half-scale gas is often done for safety purposes; this is no problem for the ToxiBoss – Tetrahydrothiophene gas monitor since it has a linear signal output. |

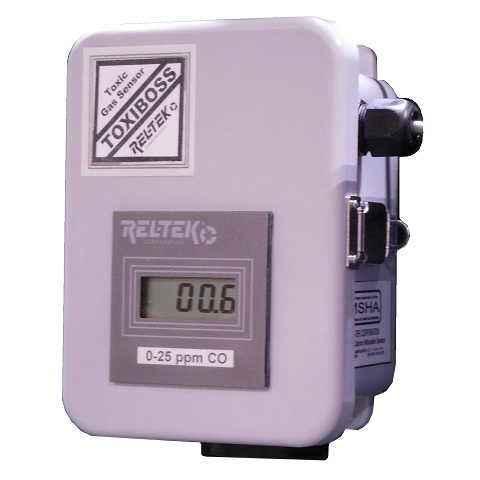

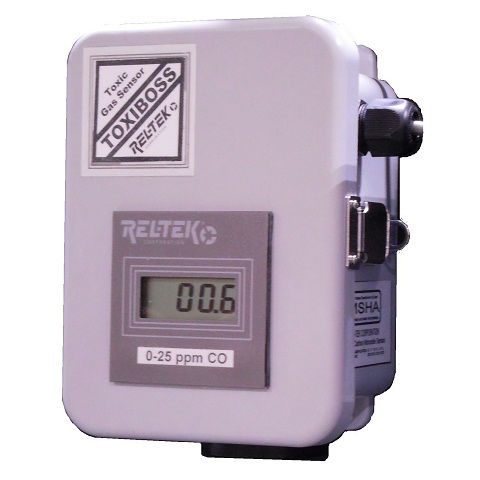

The ToxiBoss
unit is normally supplied with a NEMA-4X fiberglass and SS
weatherproof housing. For indoor use it can also be purchased
with a smaller aluminum housing with the size and appearance of a domestic
smoke alarm. Use the standard NEMA-4x version where moisture and
dirt are expected. Pick the aluminum version for decorative appearance,
ease of wiring and fast access for wiring and adjustments. Both styles
have sealed electronics to absolutely protect the integrated circuit
components from corrosion.
The ToxiBoss is
intended for ceiling or wall mounting. It produces a linear 4-20ma-output
signal; excitation 9.5-30VDC, drawing 50ma, 3-wire hookup.
ToxiBoss
arrays can be monitored individually by Rel-Tek's TelEcon trip-point
relay modules, while large arrays can be monitored, logged and networked
using Rel-Tek's Millennia-DX® PC-based SCADA systems. They can be fitted
with calibration adapters for automatic calibration using Rel-Tek's unique
MagiKalTM utilities (patents pending).
Call or
email for more information and application assistance.
ToxiBoss Specifications:
| Physical |
| TB100B (Standard version) |
| Size | 6.5w x 8h x 5.5d inches
(165w x 203h x 140d mm) |
| Weight | 3.5 pounds (1.6 Kg) |
| Construction | NEMA-4X, tough, fiberglass polyester
Hinged door and secure access |
| Hardware | Stainless steel, for long life |
| Circuit module | Potted for moisture/dust resistance |
| Hookup terminals | 3, (+) power, signal return and common |
| Installation flanges | Supplied, for four 1/4" bolts |
| Cable access ports | 1 (or 2 on special request) |
| TB100/AP (sheltered version) |
| Same electrical and performance specs |
| Size/Weight | 5x5x3", weighs 2 pounds |
| Electrical |
| Input voltage | 9.5 to 30 VDC |
| Input current | 50 ma |
| Number of conductors | 3, size 14-20 AWG (.5-3.3 sq mm)
20AWG or larger |
| Current driver | Auto-compensation, for combined
load/line resistance. |
| Grounding | Not required |
| Fuse | solid state, auto-reset |
| Gas Sensing |
| Cell type | Electrochemical fuel-cell;
plug-in replaceable. |
| Cell construction | Capillary aperture minimizes gas
interference and extends life |
| Access to atmosphere | Diffusion, no pump required |
| Gas range | 0-250 ppm depend upon cell
0-500 max; options to 2000 ppm.
Requires at least 1% oxygen. |
| Sensitivity | --1 ppm in air (by volume) |
| Drift | Usually less than 1 ppm per month
when stabilized in location. |
| Expected cell life | Depends on cell type-generally 1-3 years under normal conditions |
| MSHA Classified | Classes G/H/L under MultiBoss file for coal mines |
| NRTL UL-913 | Intrinsically safe to Class I, Div 1 & 2, Groups B C D |
| Other Approvals | Canada; CSA-C22.2 #157-M1979
CANMET ERCan (EMR) Cert. #700 for coal mines |
