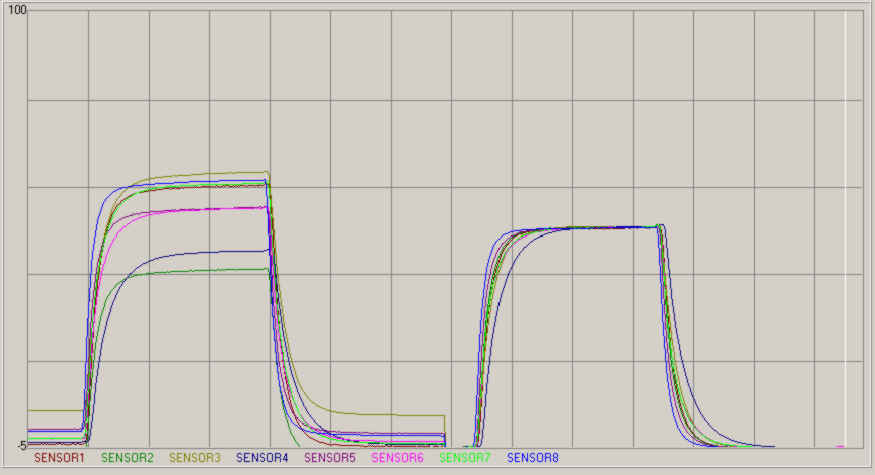

MagiKal TM demonstration graph.
MagiKal/DX™ - Demonstration Cycle
|
|
SENSOR1
|
SENSOR2
|
SENSOR3
|
SENSOR4
|
SENSOR5
|
SENSOR6
|
SENSOR7
|
SENSOR8
|
|
A. Start MagiKal/DX™, apply span gas
B. End span gas, apply zero gas
C. End zero gas cycle; computer applies numerical adjustments
The above MagiKal/DX™ demonstration cycle begins with eight purposely
mis-calibrated methane sensors and ends with eight fully calibrated units
in under 20 minutes. One MagiKal/DX™ system can process up to 64 sensors
at a time, within a 200 ft radius, all within the same time frame. An
MagiKal/DX™ system can be installed on a wheeled cart and shuttled between
sensor groups for economically handling very large plants with hundreds
of sensors. The savings in labor and calibration gas cost can pay for
MagiKal/DX™ in less than a year.
Note: Variations among sensors reflects the varying distances for cal
gas transmission, ranging from 10-175 feet from the MagiKal/DX™ station
in this particular demonstration group.
|
|
|
