Millennia/DX Monitoring System
Parameters: PC/Windows based software, computer, communication drivers
and intelligent field I/O cards; 10-mile range.
(Hover over the image to enlarge)
CONTACT SALES
Uniquely integrated software and hardware package provide a fast,
capable monitoring
and control system - specially engineered for high reliability and ease of use.
Software runs on a PC with Windows Operating System. The new code, written as
one distinct program, eliminates the slow and often unreliable DDE links most
competitors use for message transfer. User friendly; lightning
fast hard-coded graphics (not Visual Basic); enhanced draw tools; object dynamics, icon
library with meters, graphs, lights, hot buttons, vertical or horizontal fill,
translate, rotate, scale, invisible, animation; startup and control script,
audio out, alarm logs, networking, multi-level security; error detection and
logging, dynamic UPS interface, Boolean logic; 253 I/O card addresses (any type);
10-mile communications over twisted pair cable; unlimited
view screens; in/out modem access; 12-bit analog resolution; 2040 I/O point
capacity. Hot-Standby is available.
The following list of software and hardware is only a sampling of the options
available. Contact Rel-Tek Corporation
for a complete list.
| Computer software |
Code |
| Millennia-DX 64-Bit Monitoring software, Windows 7 Pro/ Linux 64-Bit |
3.041 |
| MagiKal Auto Calibration Software |
3.042 |
| Remote access SW |
3.0132 |
| UPS shutdown SW |
3.0135 |
|
|
| Computer hardware |
Code |
| Computer - with current Windows or Linux Operating System. |
3.1135 |
| DX-COM w/panel Communication driver, w/PS & panel |
3.1502 |
| Color Monitor 19" or 22" LCD. Optional Touchscreen LCD Only |
3.1204 |
| Printer color ink-jet or laser |
3.3402 |

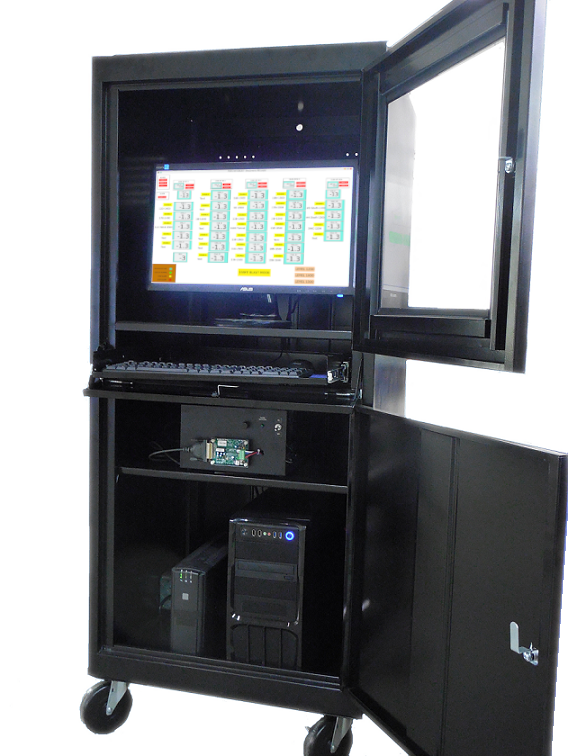

| Millennia/DX/CAB Computer cabinet, 26"Wx24"Dx62"H |
3.3202 |
| Sentinel/L15 UPS, 15-minutes, w/ computer interface |
3.3004 |
| Sentinel/L240 UPS, 4-hour, w/ computer interface |
3.3010 |
|
