Raveon SCADA Systems and equpiment

These Raveon SCADA systems and equpiment listed here are available from Raveon and perfectly works with Rel-Tek's sensors and equpiment. Products listed below are available through Rel-Tek or Raveon. Raveon's cutting edge technologies are accurate, economical and reliable, and with Rel-Tek's and Raveon's sensors and system working together you can be rest assured that you will cut down on cost and increase safety.

Long Range RF for Large SCADA Systems:

SCADA stands for Supervisory Control and Data Acquisition. The Data Radios from Raveon Technologies make ideal wireless modems for SCADA gateways and Remote Terminal Units (RTUs) in SCADA and telemetry systems.

The Tech Series versions have GPIO and FIO options to enable these Tech Series products to be complete SCADA RTUs, with many different input and output pins and features. This Application Brief describes the general requirements for a wireless SCADA system to communicate with thousands or millions of remote devices. Many telemetry and SCADA systems run on private networks or connect things to the Internet. Raveon’s wireless modems are excellent devices to connect your things to Private Networks or the Internet.

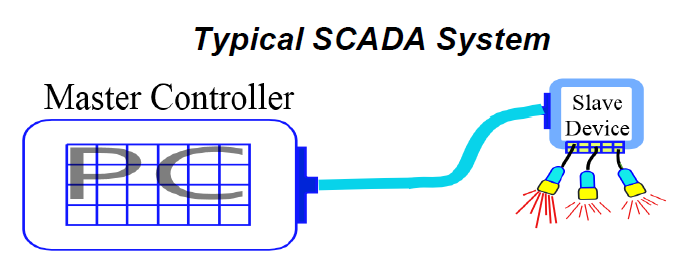

Wireless SCADA: A device or sensor is monitored by a Master Controller. The user may have something as simple as an LED indicator, or as complex as a computer server for the operator. Often this remote device is a Remote Terminal Unit (RTU) or Programmable Logic Controller (PLC). Each RTU has a device ID to identify which RTU to communicate with.

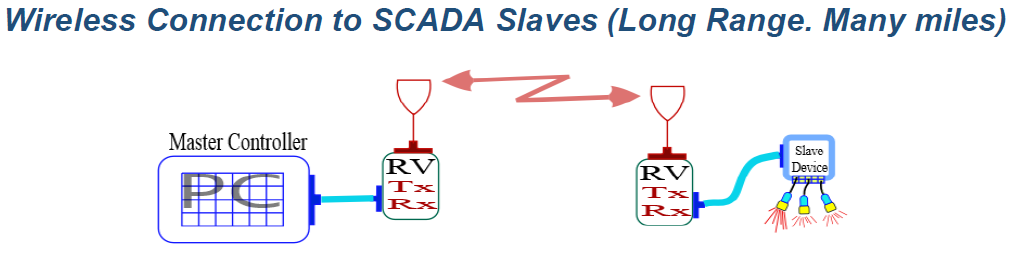

When the distance between the Master Controller and the Slave being monitored is not trivial, a wireless link between the two sites becomes a logical means of connecting them. The RTU monitors the digital and analog parameters in the field, and when the Master queries the Slave, the Slave transmits data to the Master using a SCADA protocol.
For more information, please download the PDF file.
Long Range RF for Large SCADA Systems

×

Brochures and PDF files Downloads

Please enter and submit the following to download pdf files.

Name:

Email:

Phone:

Thank You

Long Range RF Communications:

Long Range RF Data Communications is done in many different ways. This document explains the Pros and Cons of variations in wireless data communications. Communication Range depends on Frequency, baud rate, and TX power

The Science of RF Communications

• To send data bits long range
  • -Transmit each bit of data with energy. Receiver looks for data and recovers the energy
• RF energy drops over distance:
  -20 * log(distance)
• RF energy received comes in via an antenna
  • -Tall antennas (Low Frequency) are bigger and better
• Sensitive receivers pick up weak signals.
  • -3dB more sensitive is as good as 2X TX power
  • -10dB more sensitive is like 10X more power
• The longer the bit, the more energy it has
• Link Margin = 36.6 + 20 * log(D) + 20 * log(F)

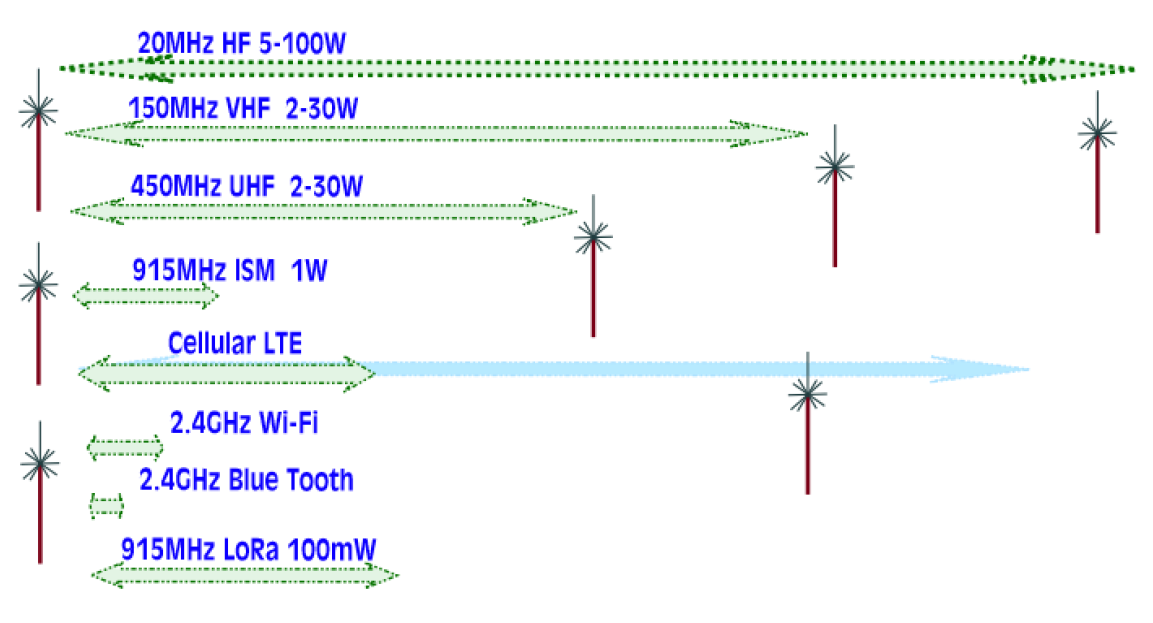

What Affects Communication Range?
All things listed here are the main things that affect communication range:
Transmit power
Receiver sensitivity
Antenna gains and antenna heights.
Frequency of the system
The energy per bit (data rate)
Modulation Methods
Baud Rate
Local interference
Topography/Terrain
In-Band Noise filtering

For more information, please download the PDF file.
Long Range RF Communications

×

Brochures and PDF files Downloads

Please enter and submit the following to download pdf files.

Name:

Email:

Phone:

Thank You

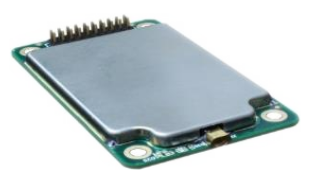

RV-M6 - M6 Narrow Band 2W OEM Radio Modem

The M6 OEM Radio Modem is low-cost rugged single-board 2W VHF/UHF/900MHz narrow-band OEM data radio modem with digital serial interface. Ideal for Automatic Meter Reading (AMR), SCADA and telemetry applications. It is over-the-air compatible with Raveon’s 5-watt M7 and M8 series of data radios.

Product Overview

Long-Range Operation

-Operating in the narrow-band frequency bands, the RV-M6 radio modem works over 10 miles point-to-point and many miles with omni-directional antennas. All RV-M6 modems support store-and-forward repeating for wide-area coverage.

GPS Option

-The optional internal GPS allows the RV-M6 to be a powerful Automatic Vehicle Locating (AVL) system or Time Space Position Information (TSPI) reporting device. Raveon’s TDMA protocol is built in for track thousands of things in real time.

Tech Series I/O Options

-The M6 may be installed in a Raveon M22 Tech Series enclosure with these I/O options. The following interface boards may be attached or changed at any time: RS-232 [ S ], USB [ U ], RS-485 [ T ], RS-422 [ F ], GPIO [ G ], Analog [ A]

High Speed and High Efficiency

-The RV-M6 operates with user-selectable over-the air data rates of 1200 to 19200bps. Its fast-switching radio enables it to send up to 50 transmissions per second.

Wireless SCADA RTU

-When used with the GPIO interface in the Tech Series enclosures, or just using the M6’s TTL IO pins, it implements many SCAD remote terminal unit features.

Flexible Input Voltage

-The RV-M6 is designed to run off of voltage sources such as 7V-30V. For other voltage ranges, contact the factory.

Automatic Meter Reading

-Being small, power efficient, and fast makes the M6 ideal for automatic meter reading. With a communication range of many miles, a network of M6 radios can cover a nation reading and managing a smart grid.

Spectrally Efficient

-In the USA, FCC complaint data radios must be capable of 9600baud in 12.5kHz channel or 19200baud in 25kHz channel. The M6’s 4FSK modes meet all FCC spectral efficiency requirements.

Network Management

-The CPU in the M6 has many features and command implemented in it to make setting up and managing large radio networks very easy. 16 bit IDs, ID masks, packet filtering, and repeating by ID are some powerful features. Ping by ID capability and remote command execution simplify network monitoring and diagnostics.

Very Low Power Consumption

It has very low power consumption, and sleep modes allow it to be active and consume almost no power at all.

Universal 20-Pin Header

The M6 is plug-in compatible with Raveon’s M8, M50, and Z50 giving your design the ability to use cellular, 915MHz ISM LoRa, industrial VHF, UHF, 220MHz, or the M6.

For more information, please download the PDF file.
RV-M6 - 2W OEM Radio Modem

×

Brochures and PDF files Downloads

Please enter and submit the following to download pdf files.

Name:

Email:

Phone:

Thank You

RV-M8 - UHF/VHF Modem 5 Watt Radio

The M8 radio modem is an economic and rugged single-board 5W VHF/UHF half-duplex data radio modem with digital serial interface, ideal for AMR, SCADA and telemetry applications. The M8 is over-the-air compatible with Raveon’s 5-watt RV-M7 series of data radios and POCSAG transmitters.

Preliminary Product Overview

Ultra-low power consumption

-Using only 70mA of current, the M8S is designed for long battery life making it the radio of choice for large-scale infrastructure monitoring solutions without reliable power source.

Custom development platform

-For OEM users, Raveon will assist integration with custom applications. The M8S utilizes a 120MHz ARM processor. Half of the processing power is reserved for custom applications for your particular implementation.

Long-Range Operation

-Available in many frequency bands, the M8S radio modem works over 10 miles point-to-point and many miles with omni-directional antennas.

Location Tracking

-The M8G’s GPS and GLONASS option includes built-in TDMA for real-time GPS tracking. Reporting rates can be configured from 4/sec to every 99999 seconds. It reports location, speed, heading, altitude, temp, and many other parameters. Any M7 or M8 series radio can receive the location messages.

Dual Mode

-The RV-M8S may be used as a two-way data radio modem, communicating with Raveon M7 or M9 series of data radio modems. It also has an ultra-sensitive POCSAG decode mode.

Automatic Meter Reading

-Being small, power efficient, and fast make the M8 ideal for automatic water-meter reading. With a communication range of many miles, a network of M8 radios can cover a national smart grid.

Secure Data

-When secure data is enabled, the M8 will encrypt transmissions using AES128 encryption. When properly managed, your wireless network using M8S radio modems will be secure and hacker-proof.

TDMA Option

-The optional on-board GPS chip allows the RV-M8G to use a sophisticated Time Division Multiple Access schema to facilitate efficient and large scale networks of tens-of-thousands radios.

Fully Programmable

-It is configured with a serial connection using industry-standard AT commands. Parameters such as network IDs, unit ID and transmission rate are easily configured. Raveon also provides a PC program called “Radio Manager” that makes configuring the M8 very convenient.

OTA Configuration

-The ID of a particular transponder and certain system parameters such as report rate may be configured Over-The-Air, without having to physically connect to the unit.

Real-time diagnostics and statistics

-Channel performance, RSSI, RF power, packet counters, and radio configuration are easily accessed via the serial port or remotely over-the-air.

Very Low Power Consumption

-It has very low power consumption, and sleep modes that allow it to be active and consume almost no power at all.

Flexible Addressing

The RV-M8 uses a 16 bit address with a 16 bit network mask, allowing for many devices to be co-located without receiving each other, as well as the creation of sophisticated network topologies.

For more information, please download the PDF file.
RV-M8 - UHF/VHF Modem 5 Watt Radio

×

Brochures and PDF files Downloads

Please enter and submit the following to download pdf files.

Name:

Email:

Phone:

Thank You

RV-M21 and RV-M22 Tech Series Products

The Tech Series radios from Raveon is the most flexible radio platform in the industry. A myriad of I/O options, and many RF band options, GPS options, wide/narrow channels, Arduino option, and wide DC input voltage range.

Features

The Tech Series radio modems from Raveon have many unique features. Compared to most radio modems, and Raveon’s industry-standard M7 radio modem, the Tech Series products feature:
1) Water-proof DC power connection
2) Locking DC connector. A screw-on M8 type connector that will not come off without unscrewing it.
3) Numerous I/O options. I/O options such as RS232/485/422 and USB are all available, and field upgradable. The radio within the Tech Series enclosure detects the I/O it is using, and adjusts its operation accordingly.
4) Low power consumption. The power supplies, receiver, GPS, and transmitter all have lower power consumption than legacy products.
5) Secure. Built in AES encryption options allow users to add additional security to their communication systems.
6) App Processor Option. You can order a TechSeries product with a built-in Arduino application processor to run your own application on.
6 Raveon Technologies Corp.
7) Broad RF Options. Radio modems used within the TechSeries enclosure are available from Raveon in VHF, 220MHz, UHF, 800MHz, 900MHz, and 3G cellular bands.
8) Wide DC input. Most Tech Series modems will work off of any DC input voltage from 10V to 30V DC, twice the range of most radios.
9) Multiple Protocols. Tech series radios support many different protocols, such as 4800, 9600, 19200 baud data modems, Bell 202 legacy analog AFSK modulation, POCSAG paging, and audio modulation. 3G cellular and LoRa WAN are also available.

For more information, please download the PDF file.
RV-M21 and RV-M22 Tech Series Products

×

Brochures and PDF files Downloads

Please enter and submit the following to download pdf files.

Name:

Email:

Phone:

Thank You

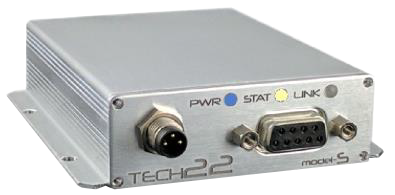

RV-M21 Tech Series M21 UHF,VHF, 220MHz Band 500mW-5W Radio Modem

The RV-M21 Radio Modem is a rugged, modular data radio modem available in UHF, VHF and 220MHz band. With its field-configurable I/O interface, the M21 can be configured for RS-232, RS-422, RS485, USB, GPIO, FIO or Audio interfaces in the lab or in the field as needed. It is over-the-air compatible with Raveon’s 5-watt RV-M7 series of data radios.

Product Overview

Reconfigurable I/O
The front interface of the M21 is fully field-reconfigurable. The following interface boards may be attached or changed at any time: RS-232 [ S ] 5A835, USB [ U ] 5A837, RS-485 [ T ] 5A836-1, RS-422 [ F ] 5A836-2, GPIO [ G ] 5A833, Analog [ A ] 5A838, FIO [D] 5A832

Embedded M8 Modem
The M21 embeds within the enclosure an RV-M8 wireless modem. Any RV-M8 series modem may be inserted into the M21 chassis, giving the M21 all the benefits and features available in the M8 series of modems. M8 series modems can communicate with Raveon’s M7 series modems.

Efficient Power Consumption
The RV-M21 can operate off DC input from 9-28V. Receiving, the M21 draws less than 1watt of power!
Long-Range Operation
The M21 radio modem works over 10 miles point-to-point and many miles with omni-directional antennas. All RV-M21 modems support store-and-forward repeating for wide-area coverage.

Fast Polling
The M21 transceiver has a 3mS PLL in it, making it one of the fastest telemetry radios available, especially well-suited for polled, DNP, and MODBUS applications.

High Speed and High Efficiency
The RV-M21 operates with user-selectable over-the air data rates of 1200 to 19200bps. Faster rates for higher efficiency or lower-speed for increased communication range. This fast-switching radio enables it to send 50 transmissions per second.

Secure Data
The data encryption feature may be enabled on any Tech Series data radio modem. When secure data is enabled, the M21 will encrypt transmissions using AES128 encryption. When properly managed, your wireless network use Tech Series radio modems will be secure and hacker-proof.

GPS Option
The optional internal GPS allows the RV-M21 to be a powerful Automatic Vehicle Locating (AVL) system or Time Space Position Information (TSPI) reporting device. Global Navigation Satellite Systems (GNSS) systems and can receive GPS, GALILEO, GLONASS on versions since G11.

OTA Configuration
The ID of a particular transponder and certain system parameters such as report rate may be configured Over-The-Air, without having to physically connect to the unit.

Real-time diagnostics and statistics
Channel performance, RSSI, RF power, packet counters, and radio configuration are easily accessed via the serial port or remotely over-the-air

Flexible Addressing and Error Correction
The RV-M21 uses a 16 bit address with a 16 bit network mask, allowing for many devices to be co-located without receiving each other, as well as the creation of sophisticated network topologies.

For more information, please download the PDF file.
RV-M21 Tech Series M21 UHF,VHF, 220MHz Band 500mW-5W Radio Modem

×

Brochures and PDF files Downloads

Please enter and submit the following to download pdf files.

Name:

Email:

Phone:

Thank You

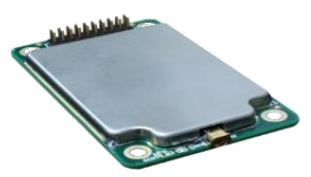

RV-M50 Secure Wireless Modem License Free Daisy Radio Modem

The RV-M50 OEM Daisy Radio modem is a small, very low-power radio modem for use in the license-free USA 902-928MHz ISM band and EU 868MHz band. Having the longest communication range in its class (with an unprecedented 1W max output), it is ideal for meter reading, telemetry, SCADA and network extension, GPS tracking.

Product Overview

Long-Range Operation -The M50 radio modem communicates over 1 to 25 km, depending upon terrain, with an unprecedented RX sensitivity. 50X better than most radio modems in its class.

LoRa -The M50 works in a peer-to-peer modem so the M50 communicates directly with other M50 modems. Digital Transmission System (DTS) is FCC 15.247 compliant with RF wide-band data >500kHz.

Embedded Radio Modem -The M50 is a radio transceiver and radio modem in one small module (Enclosures are available). Dozens of options and features in the modem may be user-configured to optimize for communication range, bandwidth, data rates, and security.

Efficient Power Consumption -The M50 can operate on DC input from 5V, or 7-30V with the optional DC regulator. While receiving, the M50 draws less than 250mW of power!

High Speed and High Efficiency -The RV-M50 operates with user-selectable over-the air data rates of 890 to 21,870bps. Other rates available up to 37.5kbps.

Secure Data -When secure data is enabled, the M50 will encrypt transmissions using AES128 encryption. When properly managed, your wireless network using M50 radio modems will be secure and hacker-proof. DSSS is recommended in this, and it can also do FHSS if you want to do Frequency Hopping.

GPS Option -The optional internal GPS allows the M50 to be a powerful Automatic Vehicle Locating (AVL) system or Time Space Position Information (TSPI) reporting device.

Internet of Things (IoT) Modem -The M50 Daisy Radio is the perfect solution to daisy chaining your smart device to the Internet of Things. It was designed with IoT in mind and optimized for low power, low cost and long range.

Tech Series I/O Options -The M50 may be installed in a Raveon M22 Tech Series enclosure with these I/O options. The following interface boards may be attached or changed at any time: RS-232 [ S ], USB [ U ], RS-485 [ T ], RS-422 [ F ], GPIO [ G ], FIO [ D ]
-The Tech Sereis vesion with GPIO and FIO interfaces can utilize MODBUS messages to read and control this M22 RTU.

Real-time diagnostics and statistics -Channel performance, RSSI, RF power, packet counters, and radio configuration are easily accessed via the serial port or remotely over-the-air

Flexible Addressing and Error Correction -The M50 uses a dynamic addressing scheme with a network mask, allowing for an unlimited number of devices to be co-located without receiving each other.

For more information, please download the PDF file.
