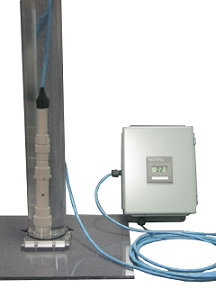

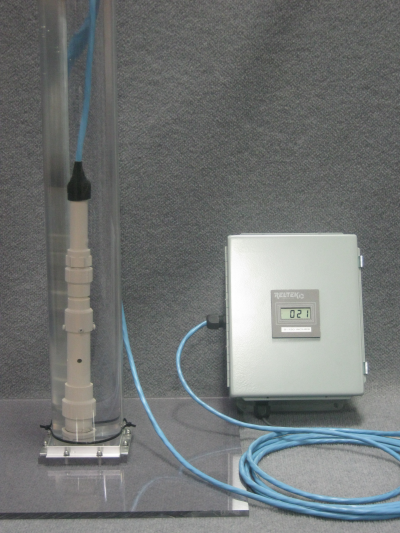

WaterBoss - Submersible Water Level Monitoring System

Unique design with replaceable pressure modules, covers low (0-10” WG differential) to higher pressures (0-300 psi gage). Use the low range for monitoring pitot tube flow (gas or liquids) or for monitoring liquid levels (water pool or oil reservoir levels). Or, choose from the 10 higher pressure ranges for monitoring line and tank pressures. Thousands of applications available from one small product. Runs on 12-30VDC, drawing about 35ma. A digital display can be added to show the pressure locally. A submersible version is available for monitoring 0-35 ft water depth, even on a 1,500 ft cable down a bore hole. Unit is MSHA evaluated intrinsically safe for use in hazardous natural gas areas of coal mines. A 4-20ma signal output is monitored by clients’s I/O device; or a controller can be supplied with a digital display, two trip point relays, and IS barrier and a 120VAC power supply. It is classified intrinsically safe for use in hazardous underground methane gas areas, with a matching intrinsic safety barrier. All non-corrosive materials.

PDF Brochure

×
