These MSHA approved Power Circuit Barriers are available based on the chart below.
Power Circuit Barriers (PCB) |
MSHA Approval
|
|
Linear PCB Model | Wattage | OutPut Voltage DC | Isolation I/P-O/P |

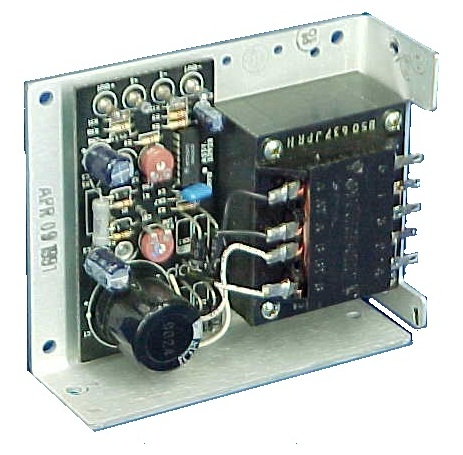

RT-POI-28-1 | 28 Watts | 28 | 3750VAC |

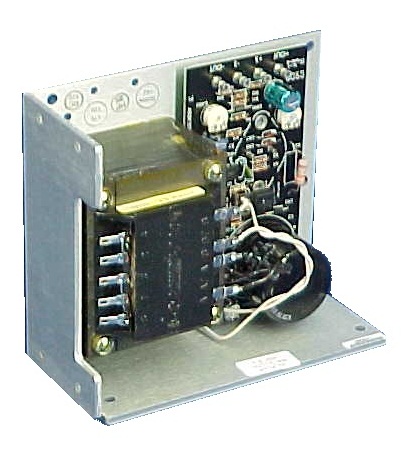

RT-POI-28-2 | 56 Watts | 28 | 3750VAC |
RT-POI-28-3 | 84 Watts | 28 | 3750VAC |

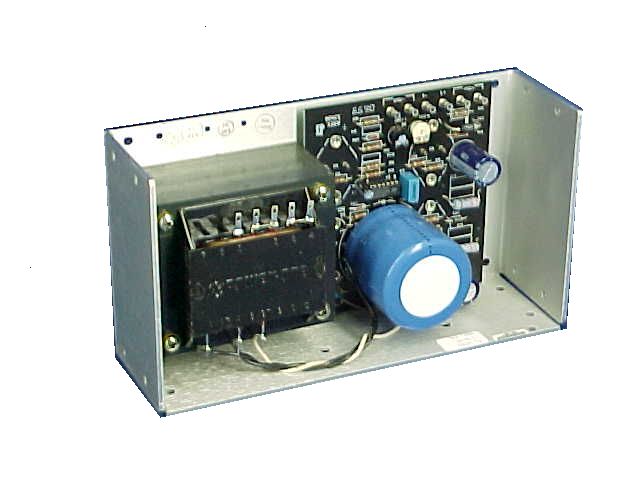

RT-POI-28-4 | 112 Watts | 28 | 3750VAC |
|
Switching PCB Model | Wattage | OutPut Voltage DC | Isolation I/P-O/P | Isolation Resistance |

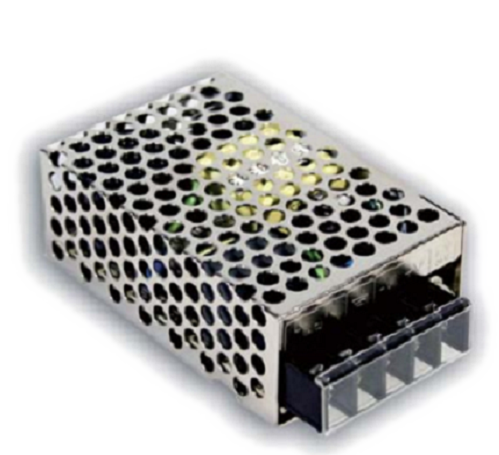

RT-RS25 Series | 25 Watts | 3.3, 5, 12, 15, 24, 48 | 3000VAC | 100M Ohm/500VDC |

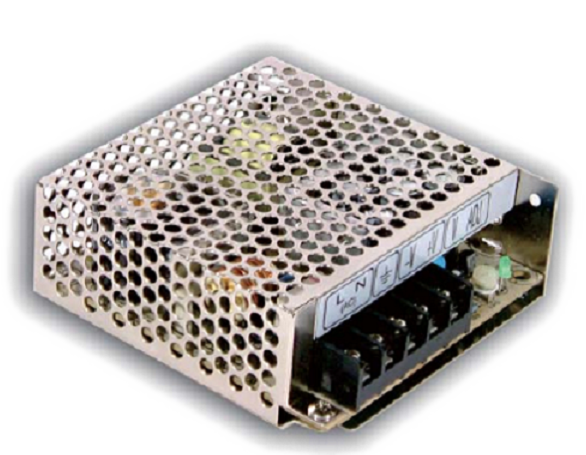

RT-RS50 Series | 50 Watts | 3.3, 5, 12, 15, 24, 48 | 3000VAC | 100M Ohm/500VDC |

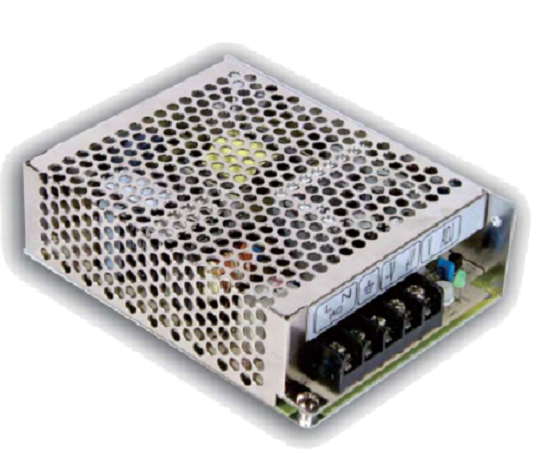

RT-RS75 Series | 75 Watts | 12, 15, 24, 48 | 3000VAC | 100M Ohm/500VDC |

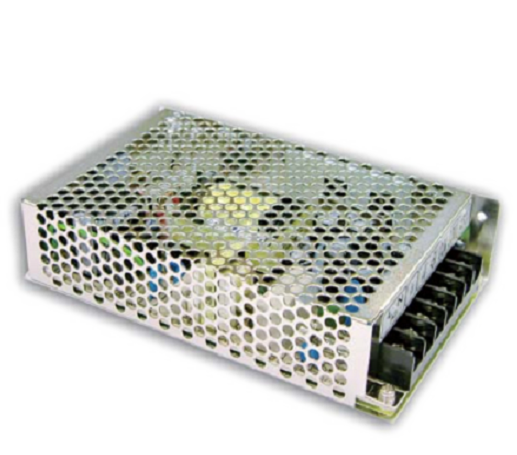

RT-RS100 Series | 100 Watts | 12, 15, 24, 48 | 3000VAC | 100M Ohm/500VDC |

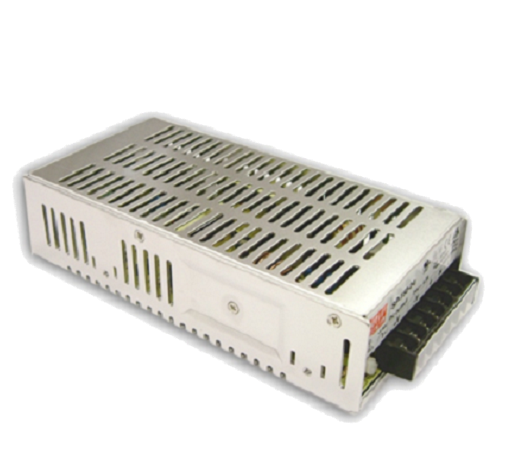

RT-SP150 Series | 150 Watts | 24, 48 | 3000VAC | 100M Ohm/500VDC |

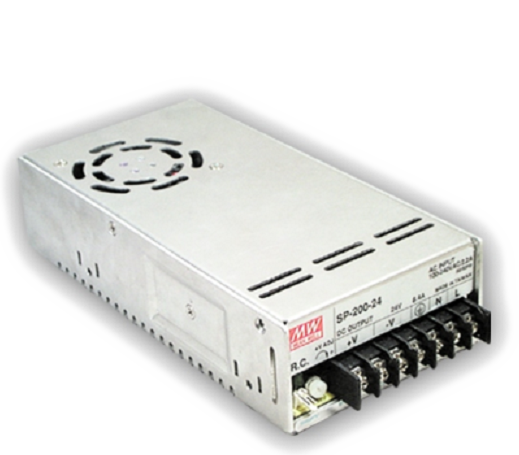

RT-SP200 Series | 200 Watts | 24, 27, 48 | 3000VAC | 100M Ohm/500VDC |

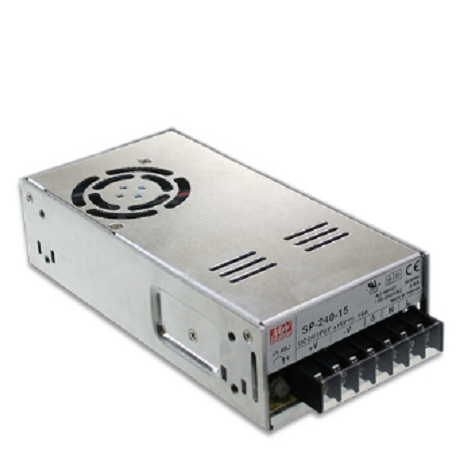

RT-SP240 Series | 240 Watts | 24, 30, 48 | 3000VAC | 100M Ohm/500VDC |
|
Relay PCB Model | Max Amps | Coil Voltages | Isolation I/P-O/P | Max Voltage |

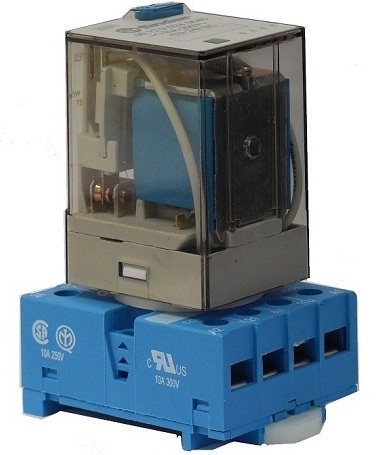

MR-600 Relay AC | 10 amps | 6-240VAC | 2000VAC | 240VRMS |
MR-600 Relay DC | 10 amps | 6-110VDC | 2000VAC | 240VRMS |
|
Optical Power Circuit Barrier | Voltage Rating | Type of Isolation | | |

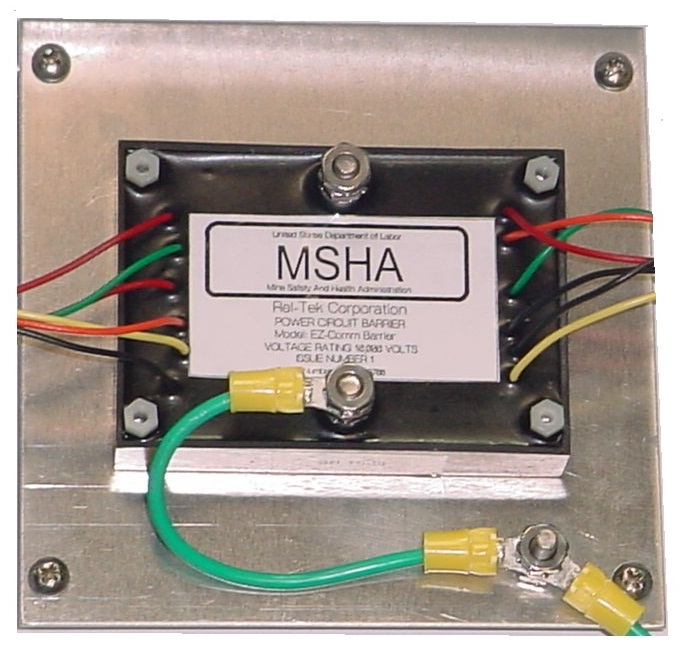

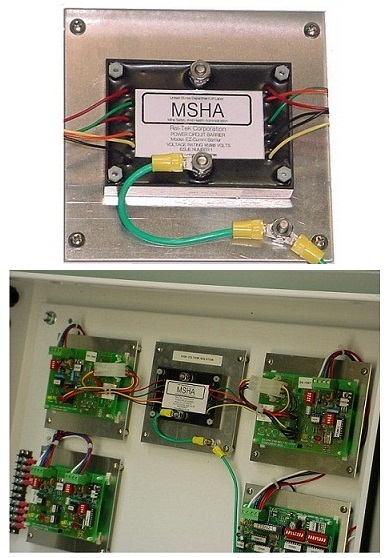

EZ-Comm Barrier | 10,000 Volts | Optical | | |
|
